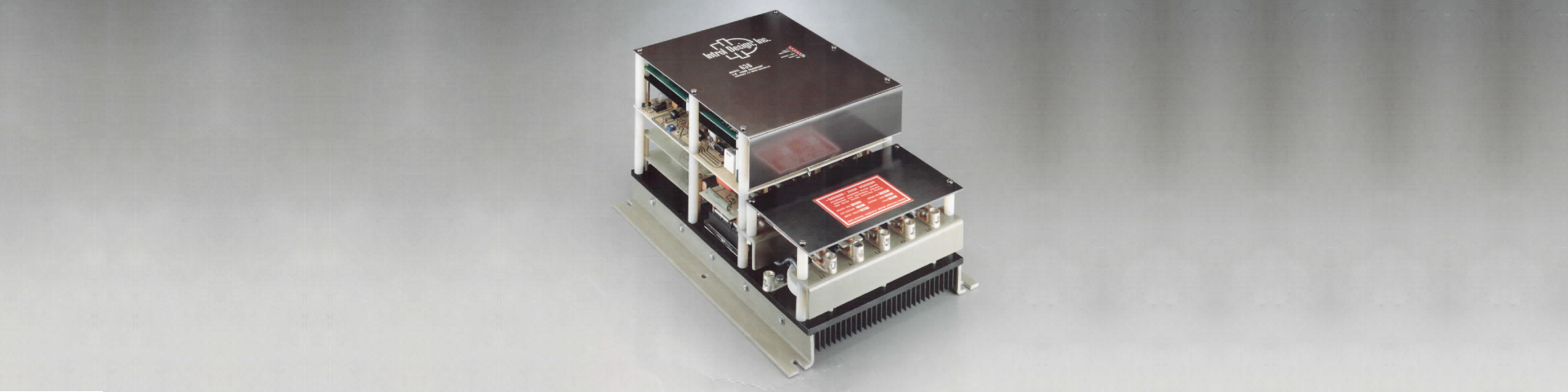

INTROL Model 636

Regenerative DC Motor Controller

Introl Model 636 is a 3 phase full wave four quadrant regenerative control for use on DC motors up to 50 HP. The control operates on 230/460 VAC 3 phase, 50/60 Hz power. The twelve SCR power bridge provides improved efficiency and better form factor which results in cooler operation. The Model 636 is packed with features not found on most controls. Microprocessor design provides faster response for use in servo applications. The control also works exceptionally well in torque applications. Microprocessor design also provides improved fault detection, programmable operation modes, programmable overload along with many other features.

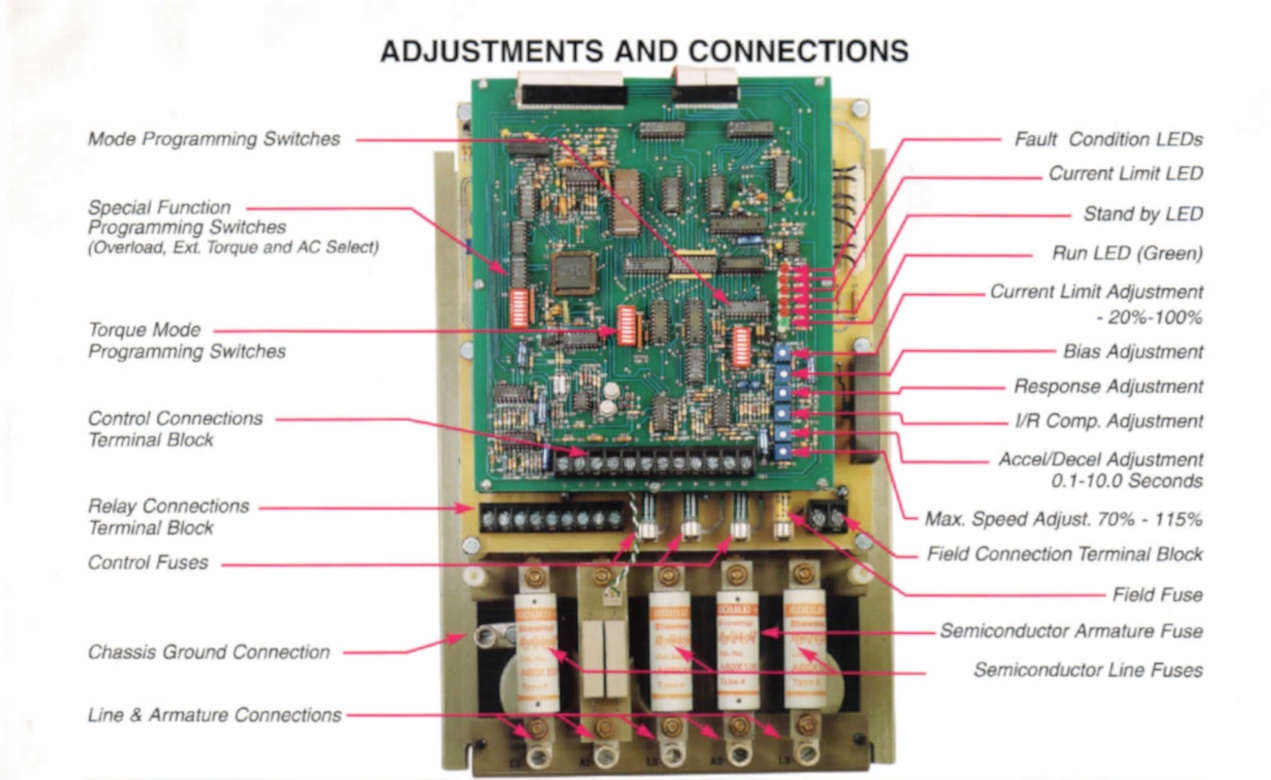

STANDARD FEATURES

• Solid State Full Wave Power Bridge
• Quadrant Lockout - Allows Operation in Only One Direction with Regenerative Braking Switch Selectable
• Semiconductor Fuses - Line and Armature lsolated Control Circuitry
• Phase Insensitive
• 230/460 VAC Operation
• 180 Hz Alternating Current to Armature Enhances Slow Speed Operation - Switch Selectable
• Extended Torque Range - Allows 150% of Current Setting for Programmed Time 0, 1, 5 or 10 Seconds
• Overload - Switch Programmable for 2-32 Seconds in 2 Second Increment
• Full Four Quadrant Operation Speed or Torque Regulation Switch Selectable Current Limit Indicator
• Run/Stop Relay - Form C for use with External Armature Contactor
• Slow Speed Response Boost- Improves
  Slow Speed Response - Switch Selectable
• Maximum Motor Speed - While in Torque Mode Drive will Deenergize when Programmed Speed is Reached While Operating in Torque
• Programmable for 10-100% of Maximum Speed Setting
• Indicators for Stand-by, Run, Current Limit and Fault Detection

Specifications

Rating

• Input Power: 230 VAC or 460 VAC
• Horse Power Range:
  • 636-10 5HP @ 230 10HP @ 460
  • 636-20 .10 HP @ 230 20HP @ 460
  • 636-30 .15HP @ 230 30HP @ 460
  • 636-40 20 HP @ 230 40 HP @ 460
  • 636-50 .25 HP @ 230 50 HP @ 460
• Line Frequency: 50/60 Hz
• Output Voltage:
  • @230 VAC
    • 240 VDC Arm
    • 150 VDC Field
  • @460 VAC
    • 500 VDC Arm
    • 300 VDC Field
• Drive Service Factor: 1.0
• Duty: Continuous
• Input Signal: 0 to ±10VDC

Faults

• Overload
• Field Loss
• Phase Loss
• Loss of Feedback Signal
• Heat Sink Over Temperature
• Maximum Speed Exceeded in Torque Mode
• Note: Upon a fault condition the drive will deenergize and a Form C Relay will change state and LED indicators will output Fault Code. Drive will not restart when fault is cleared until it is reset by disconnecting power then reapplying.

Operating Condition

• Line Voltage Variation: ±10%
• LIne Frequency Variation: ±2Hz
• Ambient Temperature: 0-55°C
• Altitude: to 3300
• Required Space for TENV Enci: 1000 cu in/HP@230 VAC

Performance

• Speed Regulation:
  • CEMF - Voltage Feedback: 2% of Set Speed
  • Tachometer Feedback: 0.5% of Set Speed

Operator Functions

• Power On/Off, Run/Stop: Customer Supplied
• Forward/Reverse: Customer Supplied
• Speed Pot - 5K, 2W Customer Supplied
• Relay Output: 3 Amp @ 28 VDC or 120 VAC

Dimensions

• 12"W * 16.5"L * 9"Deep
