INTROL SL Series

Brushless Servo Motors

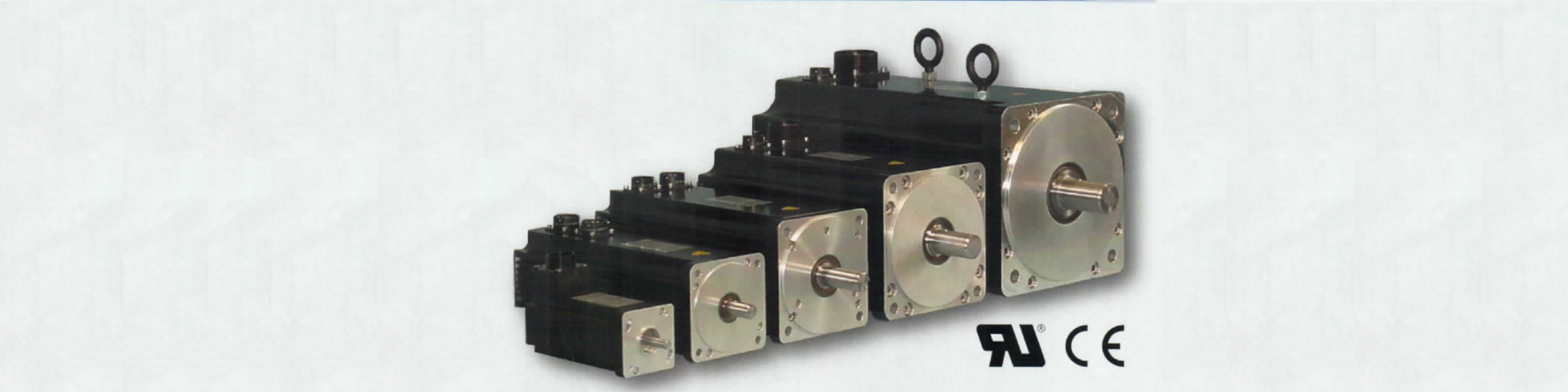

Introl’s 2”, 3”, 4”, 6” and 8” frame size of brushless servo motors have been designed to complement the Introl brushless servo drive line, as well as providing an economical alternative to other motor manufacturers’ brushless motors. The stator windings are wound using the highest quality magnet wires with Class H insulation, to withstand high temperatures in severe duty applications. Use of high energy Neodymium Iron Boron magnets has allowed the SL Series Motors to deliver high torque to size ratio. The sinusoidal Back EMF of the motor allows for smooth commutation down to zero speed. The following page illustrates Introl’s standard motor line specifications. Special orders are welcomed (in most cases at no additional cost).

Feedback

• Resolver: Two pole single turn resolver with sine, cosine output. Ideal to interface with all major manufacturers’ drives.
• Encoder: Encoder: Introl motors can be furnished with a commutating encoder feedback of various resolutions at no additional cost.
• Many resolutions are available.

Fail-Safe/Spring-Applied Brake

• Introl’s motors can be furnished with a 24VDC brake as an option where application of 24Vdc will release the brake allowing rotation.

Shaft/Face Mounting Options

• All Introl motors can be supplied with English/NEMA face and shaft or Metric at no additional cost.

Connector options

• Various military styles (M.S.), European styles or N.P.T. versions are available. Please contact us with your requirements.

Ratings

• 25°C ambient temperature with maximum 100°C on motor case. Motor sealed to IP65 with shaft seal. Motors are supplied with 154°C normally closed thermal switch imbedded in the winding.

EXAMPLES OF INTROL SL SERIES OF BRUSHLESS SERVO MOTOR LINE-UP

Motor	HorsePower(HP)	KiloWatts(KW)	Max Speed(RPM)	Rated Speed(RPM)	Rated Torque In-Lbs [Nm]	Peak Torque In-Lbs [Nm]	Rated Line Current (Arms)	Peak Current (Arms)	Torque Constant kt in-Labs [Arms]	Back EMF Constant Ke	DC Resistance (Ohms)	inductance (mH)	MaxLine Voltage (Vms)
SLSOA-18	0.27	0.20	6000	4000	4.2 [0.48]	14.7 [1.66]	2.10	7.40	2.30 [0.26]	17.70	14.60	7.80	230
SLSOA-24	0.17	0.13	4400	2500	4.5 (0.51)	11.3 (1.27)	1.60	4.10	3.10 [0.35]	23.90	27.60	9.30	230
SLSOB-18	0.63	O.47	6000	5000	8.0 [0.90]	28.0 [3.20]	3.80	13.30	2.30 [0.26]	17.70	4.40	3.80	230
SL50B-24	0.38	0.28	4500	3000	8.0 [0.90]	28.0 [3.20]	2.70	9.70	3.10 [0.35]	23.90	8.50	4.60	230
SLB0A-23	0.79	0.59	8000	3300	15.0 [1.70]	53.0 [5.90]	5.20	18.40	3.01 [0.34]	23.40	2.60	6.20	230
SL80A-36	0.90	0.67	5800	4000	14.0 [1.60]	49.0 [5.50]	3.20	11.30	4.60 [0.52]	35.80	6.10	14.50	230
SL80A-63	0.58	0.43	3300	2400	15.0 (1.70)	53.0 [5.90]	2.00	6.90	8.14 [0.92]	62.60	18.80	44.40	230
SLB0A-91	0.80	0.60	4600	3600	14.0 [1.60]	49.0 [5.50]	1.30	4.60	11.42 [1.29]	90.90	44.50	90.70	460
SL80B-25	1.57	1.17	8000	3800	26.0 [2.90]	91.0 [10.30]	8.50	29.70	3.19 [0.36]	24.60	0.90	3.40	230
SL80B-36	1.65	1.23	5700	4000	26.0 [2.90]	91.0 [10.30]	5.80	20.50	4.60 [0.52]	35.80	1.90	7.30	230
SL80B-69	1.10	0.82	3000	2400	29.0 [3.30]	102.0 [11.50]	3.40	11.70	8.85 [1.00]	69.30	7.40	27.20	230
SL80B-91	1.47	1.10	4600	3600	26.0 [2.90]	91.0 [10.30]	2.30	8.10	11.68 [1.32]	90.90	12.70	45.30	460
SL80C-37	2.10	1.60	5600	4000	33.0 [3.70]	112.0 [13.1]	7.10	25.00	4.78 [0.54]	36.90	1.00	5.10	230
SL80C-57	1.74	1.30	3400	3000	38.0 [4.30]	135.0 [15.30]	5.30	18.40	8.35 [0.94]	57.00	2.70	12.30	230
SL80C-70	1.47	1.10	2900	2400	40.0 [4.50]	140.0 (15.80)	4.50	15.80	9.03 [1.02]	70.40	4.20	18.70	230
SL80C-102	2.00	1.50	4100	3600	35.0 [4.0]	123.0 [13.90]	2.80	9.70	12.92 [1.46]	102.00	8.60	38.30	460
SL97A-43	2.82	2.10	4800	3600	50.0 [5.70]	150.0 [17.0]	9.20	27.70	5.49 [0.62]	42.90	1.10	4.40	230
SL97A-54	2.55	1.90	3900	3000	53.0 [6.00]	159.0 [18.0]	7.80	23.50	6.90 [0.78]	53.60	1.70	6.90	230
SL97TA-64	2.55	1.90	3200	3000	54.0 [6.10]	162.0 [18.30]	6.60	19.90	8.32 [0.94]	64.40	2.40	10.00	230
SL97A-86	1.61	1.20	2400	1800	56.0 [6.30]	168.0 [19.0]	5.10	15.40	11.06 [1.25]	85.80	4.70	17.80	230
SL97A-107	1.34	1.00	1900	1500	57.0 [6.40]	171.0 [19.3]	4.20	12.60	13.81 [1.56]	107.00	7.30	27.80	230
SL97B-43	4.56	3.40	4800	3600	80.0 [9.0]	240 [27.10]	14.80	44.30	5.49 [0.62]	42.90	0.40	2.20	230
SL97B-64	4.29	3.20	3300	3000	89.0 [10.1]	356.0 [40.4]	10.60	43.40	8.32 [0.94]	64.40	0.80	3.90	230
SL97B-86	2.82	2.10	2400	1800	99.0 [11.2]	297.0 [33.60]	9.00	27.10	11.06 [1.25]	85.80	1.60	8.90	230
SL97B-107	3.90	2.90	4200	3000	81.0 [9.20]	324.0 [36.7]	5.90	23.70	13.8 [1.56]	107.00	2.60	13.90	460
SL97C-43	5.76	4.30	4800	3600	100.0 [11.30]	300.0 [33.90]	18.50	55.60	5.49 [0.62]	42.90	0.23	1.50	230
SL97C-72	5.50	4.10	3300	3000	115.00 [13.0]	575.0 [65.0]	12.70	63.50	9.29 [1.05]	72.00	O.71	3.80	230
SL97C-86	3.75	2.80	2400	1800	131.0 [14.80)}	393.0 [44.50]	12.00	35.90	11.1 [1.25]	85.80	0.92	5.90	230
SL97C-107	5.23	3.90	3800	3000	110.0 [12.40]	332.0 [37.50]	8.00	23.90	15.70 [1.77]	107.30	1.50	9.30	460
SL130A-74	4.70	3.50	2800	2600	115.0 [13.00]	403.0 [45.5]	12.30	43.10	9.47 [1.07]	73.70	1.10	9.30	230
SL130A-115	2.80	2.10	1800	1500	120.0 [13.60]	420.0 [47.50]	8.20	28.70	14.87 [1.68]	115.00	2.70	22.70	230
SL130A-166	3.75	2.80	2500	2000	120.0 [13.60]	420.0 [47.50]	5.70	20.00	21.33 [2.41]	166.00	5.50	47.10	460
SL130B-69	8.80	6.60	3000	2600	213.0 [24.10]	746.0 [84.3]	24.20	84.60	8.85 [1.00]	69.10	0.24	3.30	230
SL130B-115	6.17	4.60	1800	1500	260.0 [29.40]	910 [103.0]	17.70	61.90	14.87 [1.68]	115.00	0.63	9.10	230
SL130B-184	7.60	5.70	2200	2000	242.0 [27.40]	847.0 [95.8]	10.30	36.00	23.70 [2.68]	184.00	1.70	23.20	460
SL130C-74	11.80	8.80	3000	2800	310.0 [35.10]	1085.0 [123.0]	33.00	116.00,	9.47 [1.07]	73.70	0.14	2.30	230
SL130C-111	13.70	10.20	3600	3000	288.0 [32.50]	1159.0 [131.0]	20.00	80.20	16.20 [1.83]	111.00	0.33	2.30	460
SL130C-184	10.46	7.80	2200	2000	330.0 [37.3]	1155.0 [131.0]	14.00	48.90	23.72 [2.68]	184.00	0.86	14.50,	460
SL180B-69	9.12	6.80	3000	2400	240.0 [27.1]	720.0 [81.4]	2730	81.80	8.85 [1.00]	69.00	0.25	5.50	230
SL180B-144	9.12	6.80	2900	2400	240.0 [27.1]	720.0 (81.4)	13.10	39.20	18.50 [2.09]	144.00	1.10	23.90	460
SL180C-66	12.33	9.20	3100	2400	325.0 [35.8]	1138.0 [129.0]	38.60	135.00	8.50 [0.96]	65.90	0.11	3.30	230
SL180C-141	12.33	9.20	2900	2400	325.0 [35.8]	1138.0 [129.0]	18.10	63.20	18.14 [2.05]	141.00	0.52	15.30	460
SL180D-63	14.61	10.90	3300	2400	385.0 [43.6]	1348.0 [152.0]	48.00	168.00	8.05 [0.91]	62.70	0.07	2.30	230
SL180D-138	14.48	10.80	3000	2400	380.0 [43.0]	1520.0 [172.0]	21.50	86.10	17.70 [2.00]	138.00	0.33	11.00	460
SL180E-63-8	17.16	12.80	3300	3000	360.0 [40.7]	900.0 [102.00]	45.60	114.00	8.05 [0.91]	62.70	0.10	4.30	230
SL180G-154	22.42	16.50	2700	2400	580.0 [65.6]	1740.0 [197.0]	29.90	89.60	19.56 [2.21]	154.00	0.18	7.80	460
SL180H-151	28.95	21.60	2700	2400	760.0 [86.0]	2280.0 [258.0]	39.90	120.00	19.47 [2.20]	151.00	0.14	6.60	460
SL180J-157	36.19	27.00	2700	2400	950.00 [107.0]	2375 [269.0]	48.00	120.00	20.18 [2.28]	157.00	0.11	5.70	460
